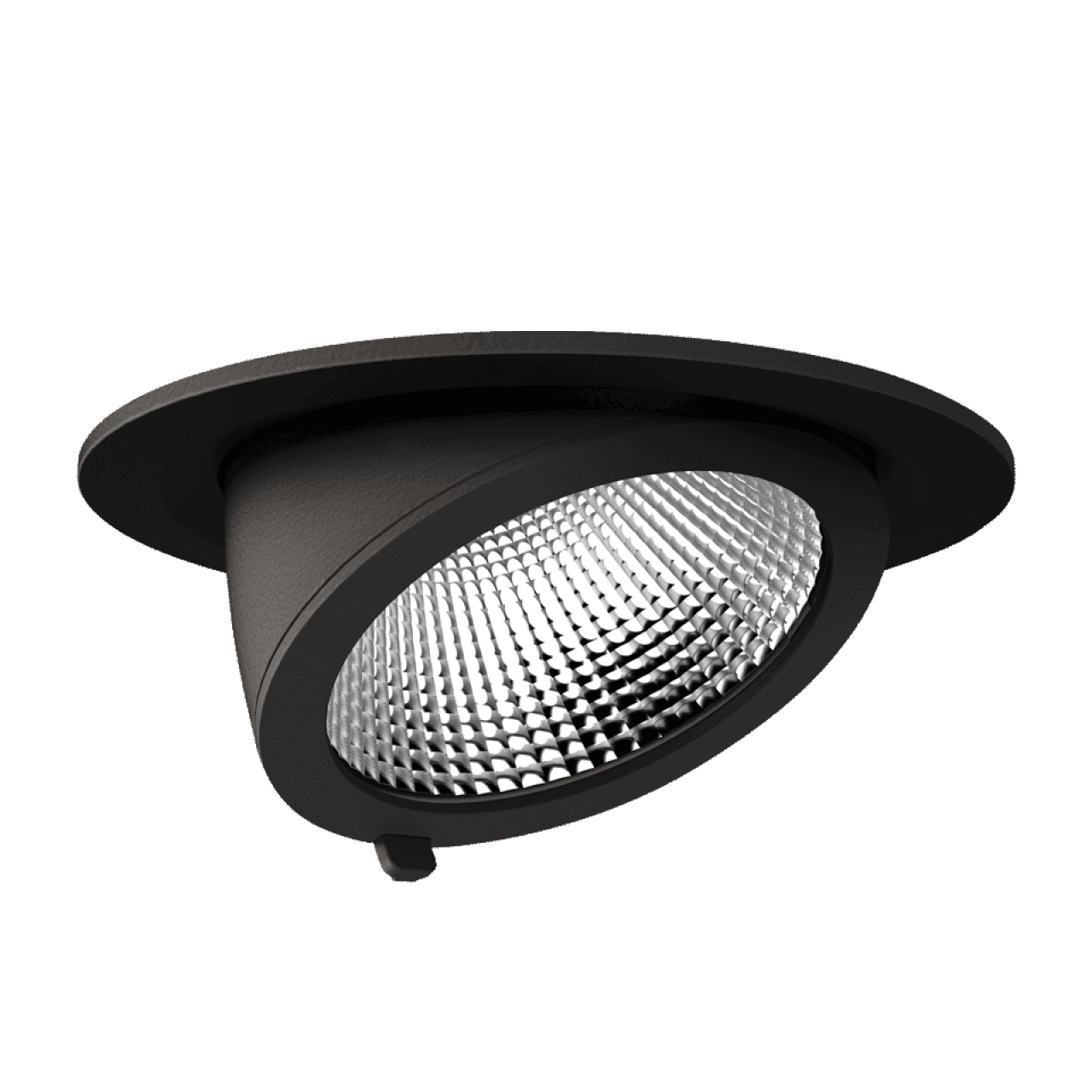

ELM1
Flexible Performance
The ELM1 series is ideal for ceiling layouts in which recessed lights need to take on versatile lighting tasks. The spotlight can be rotated and swiveled continuously, impresses thanks to its high optical glare reduction and fits in with the restrained aesthetics of the TLM1 track variant.
Product Details
- Variety of variants enables a wide range of applications
- two different power classes, three beam angles
- Black anti-glare ring to optimize glare evaluation (UGR) available as an accessory
- Standard light colors with high CRI
- thoughtful design
- continuously rotatable and pivotable
- small design
- controllable via BLE (BT) 5.0 or DALI
Quickinfo
| Wattage | 17 - 26 W |
| Luminous class | 2.000 - 3.000 lm |
| Light efficiency | bis zu 135 lm/W |
| Body colour | weiß, schwarz, grau |
| Lifetime | L80 B10 / 50.000 h |
| Controllable | on/off, DALI, BLE (BT) 5.0 |
| Diameter | ø 70 mm / 150 mm |
| rotation / swivel angle | 355° / 90° |
| Beam angle | 18° / 24° / 36° |
| color consistency | initial MacAdam 3 SDCM |
| Light color | 2.700 / 3.000 / 4.000 / 5.700 K / Speziallichtfarben |
| CRI | bis zu ra >97 |
