ESP1
Uncompromising in all facets.
Professional recessed spotlight series in a wide variety of variants for high-quality applications in architecture, exhibitions, offices and home applications. Anti-glare and efficiency-optimized (up to 136 lm/W) optical system (UGR up to <4) with high color rendering (CRI >90). Including external control gear via plug connection. Available as standardized versions or for individual configuration of over 5000 variants using various reflectors and secondary optics.
Product Details
- Particularly high visual comfort
- three different performance classes
- three different light colors and tunable white (1800-4000K)
- High CRI >90, High efficiency (up to 136lm/W)
- Additional optical accessories available: Linear Spread, Honeycomb

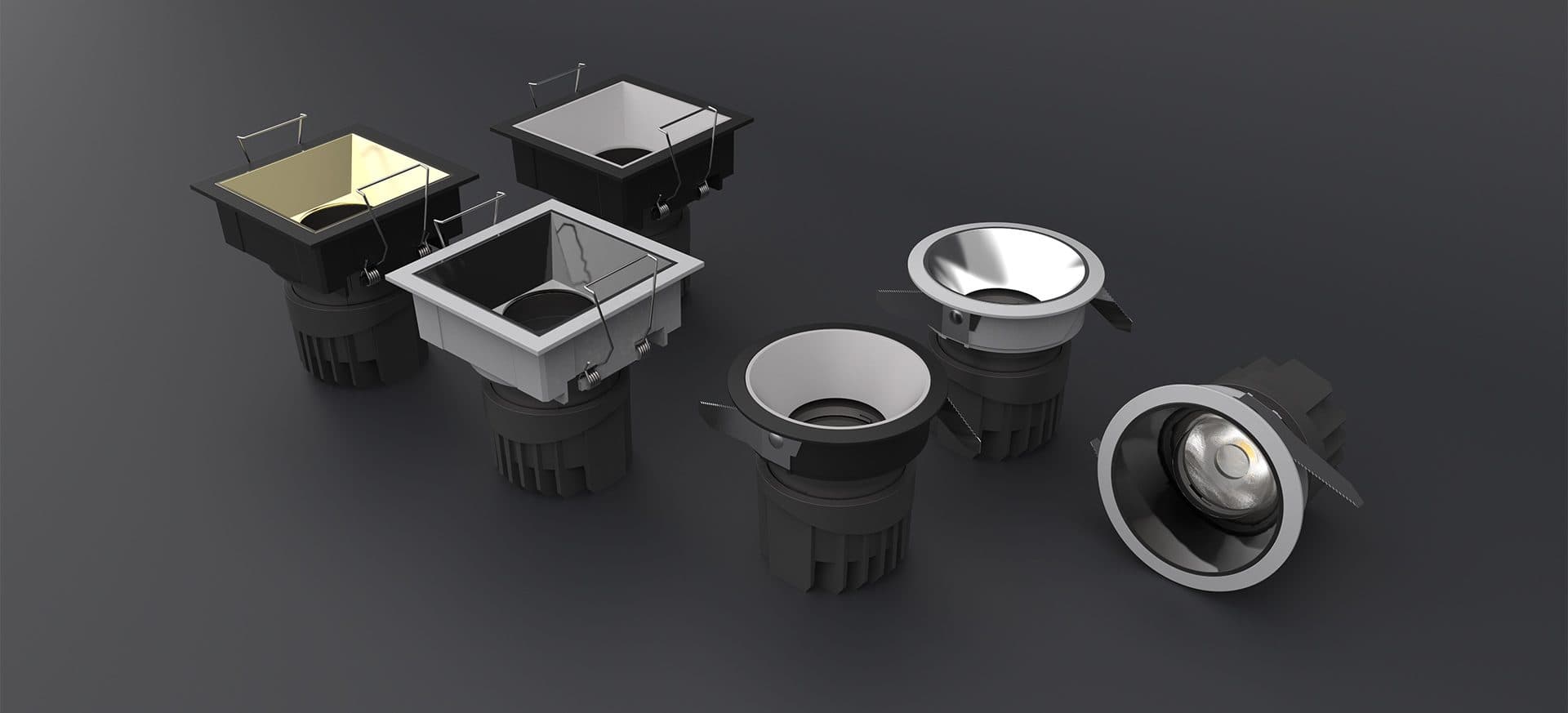

- Different reflectors available: matt black, silver, white, matt gold
- As an ESP1 individual, it can be combined into >5000 variants
Quickinfo
| Wattage | 8 W / 14 W / 19 W |
| Luminous class | 1.000 lm / 1.500 lm / 2.000 lm |
| Light efficiency | bis zu 136 lm/W |
| Light color | 2.700 / 3.000 / 4.000 K / TW 1.800-4.000 K (DALI DT8) |
| CRI | ra >90 |
| Beam angle | 25°, 40°, 55° |
| Color consistancy | initial MacAdam 3 SDCM |

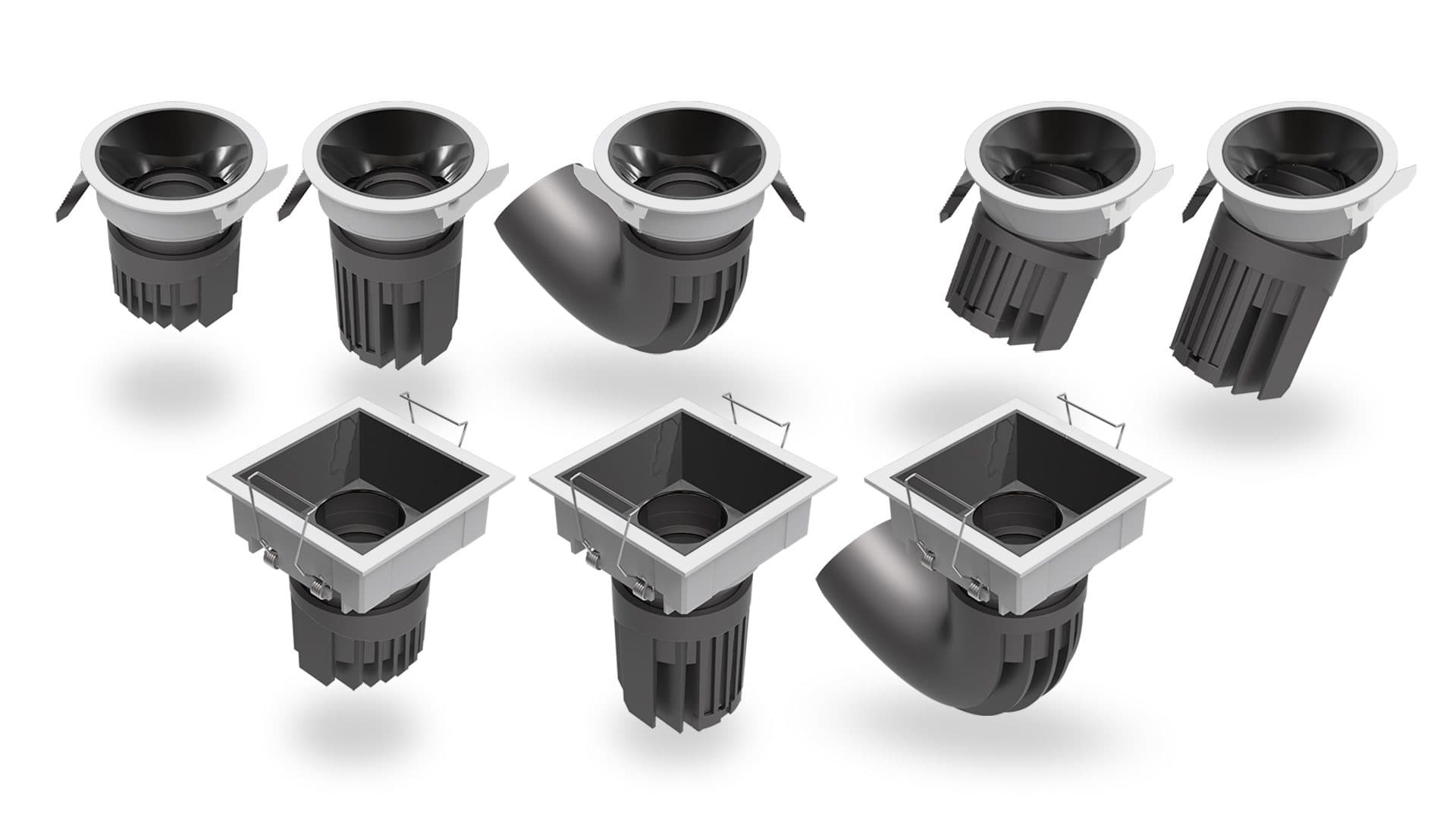

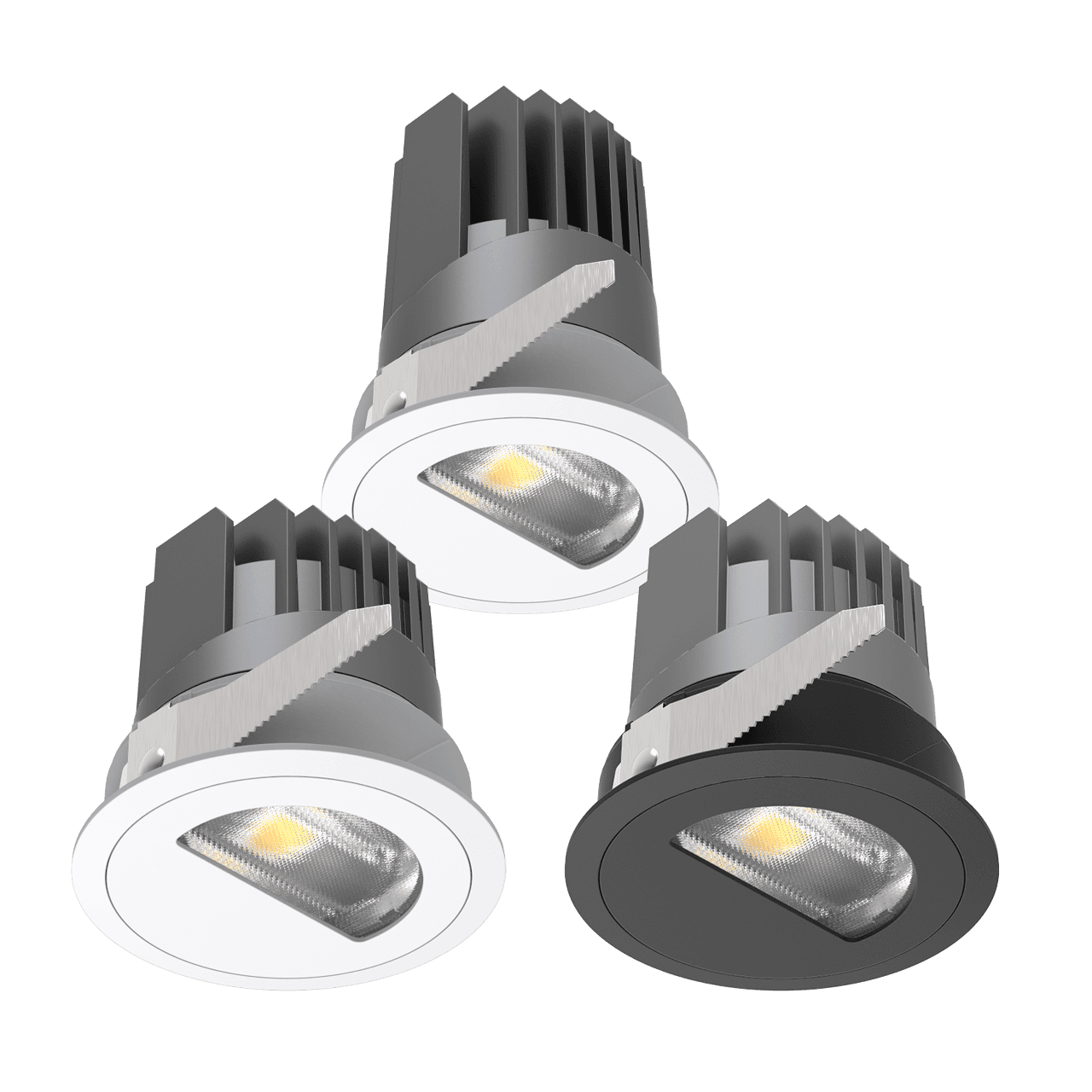

| Types | starr / schwenkbar |
| Housing types | rund / eckig |
| Housing color | weiß / schwarz |
| Lifetime | L90 B10 / 50.000 h |
| Controllable | on/off |
| Cutout | Ø 68 mm |
